The 5 Stud Wheel Bolt Pattern Gauge is built for makers who need precise placement every time. Covers all common 5-lug pcds in metric (100mm to 130mm) and imperial.
-

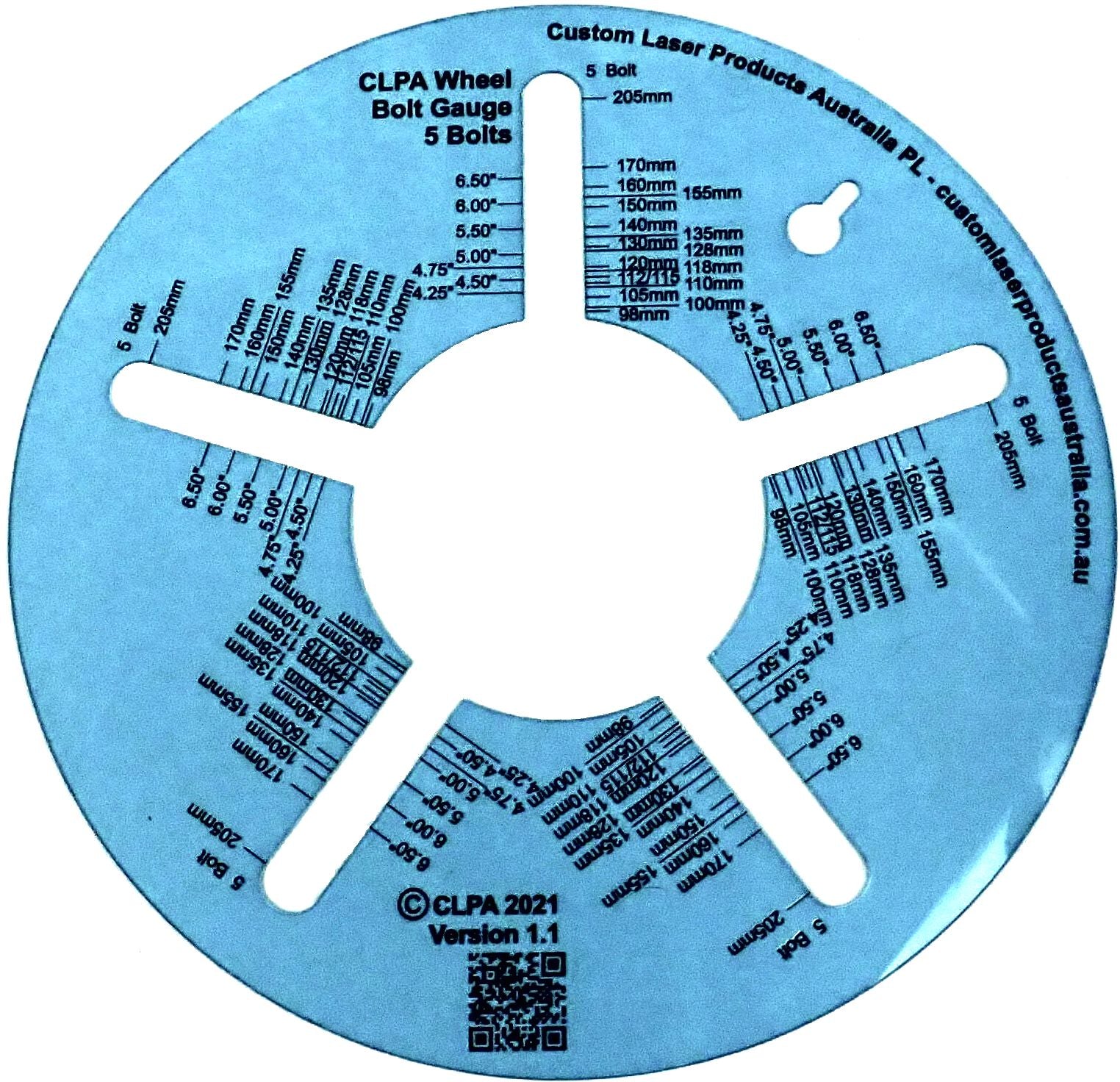

5 Stud Wheel Bolt Pattern Gauge — covers all common 5-lug PCDs in metric (100mm to 130mm) and imperial; the most common bolt pattern for passenger cars and light trucks
-

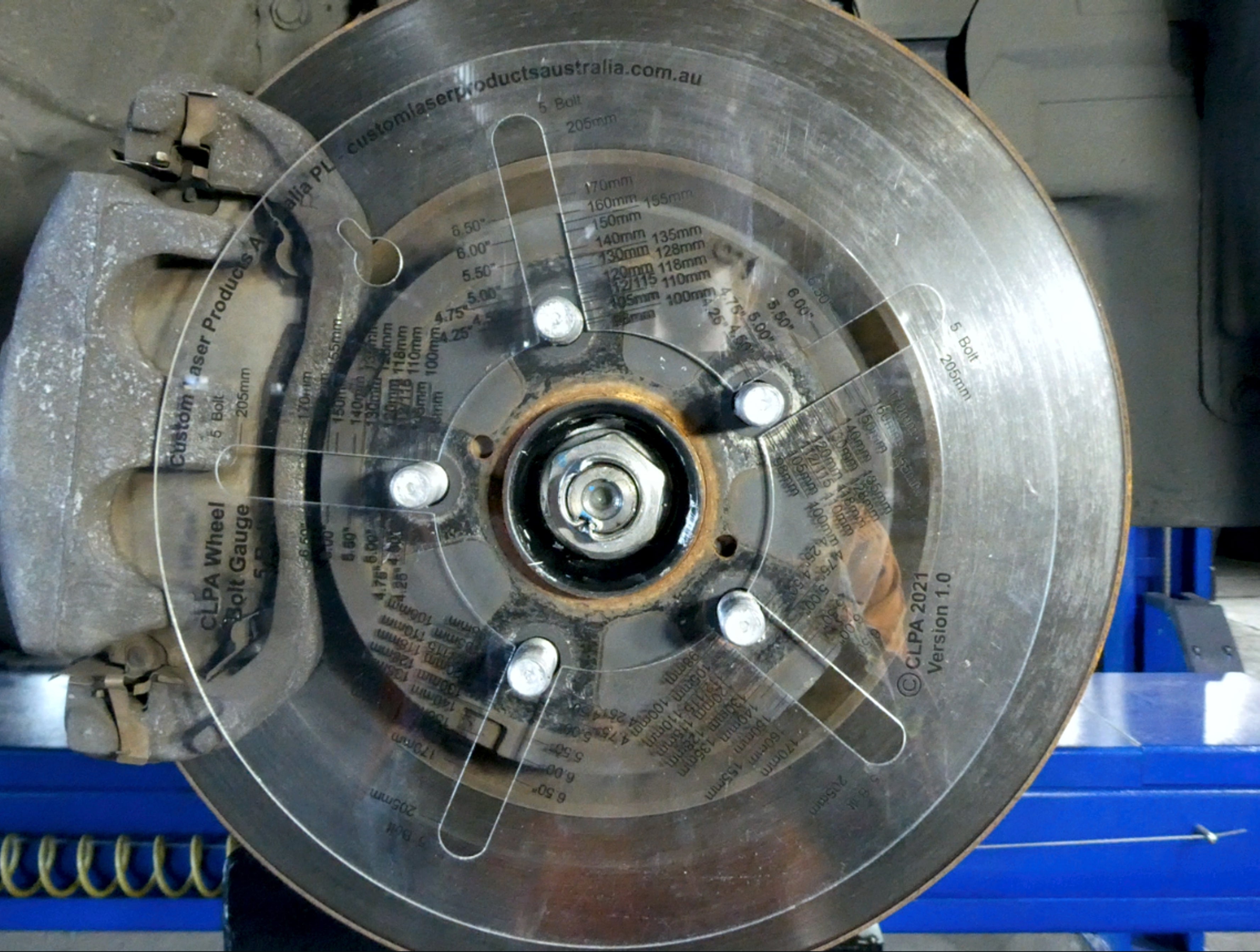

Metric and Imperial in One Tool — all common bolt circle diameters printed in both mm and inches; align the holes over the wheel studs to instantly read the PCD without calculation
-
Clear PETG Plastic, UV-Printed — flexible and durable; transparent so you can see the studs through the gauge; UV-printed markings will not scratch or fade with regular use
-
For Wheel Fitment, Tyre Shops and Enthusiasts — use as a wheel bolt pattern measuring tool, wheel fitment tool, or PCD gauge for passenger cars, trucks, trailers, and off-road vehicles
-
Australian Designed and Manufactured — laser-cut on the Sunshine Coast; stocked in Australia, USA and UK for fast worldwide delivery
The wheel bolt pattern gauge is a precision measuring tool for identifying wheel bolt patterns (PCD — pitch circle diameter) on cars, trucks, trailers, and off-road vehicles. Use as a wheel bolt pattern measuring tool, bolt pattern measuring tool, or wheel fitment tool to confirm the correct PCD before purchasing or swapping wheels.
